Containerized Wastewater Treatment Plant

Short Description:

LD-JM® MBR membrane bioreactor(Containerized Wastewater Treatment Plant) , Can be combined to 10,000 tons. The box body is made of Q235 carbon steel material, with UV elimination Poxic, more penetrating, can kill 99.9% of bacteria, core membrane group using internal Lined with a reinforced hollow-fiber membrane.

Send email to us

Product Detail

Product Tags

Equipment Features

1. Long service life: The box is made of Q235 carbon steel, spraying corrosion coating, environmental corrosion resistance, life of more than 30 years.
2. High efficiency and energy saving: The core film group is lined with reinforced hollow fiber film, which has strong acid and alkali tolerance, high pollution resistance, good regeneration effect, and the erosion and energy consumption of aeration is more flat than the traditional Plate film energy saving about 40%.
3. Highly integrated: The membrane pool is separated from the aerobic tank, with the function of offline cleaning pool, and the equipment is integrated to save land space.
4. Short construction period: Civil construction only hardening the ground, the construction is simple, the period is shortened by more than 2/3.
5. Intelligent control: PLC automatic operation, simple operation and maintenance, taking into account the offline, online cleaning control.
6. Safety disinfection: Water using UV disinfection, stronger penetration, can kill 99.9% bacteria, no residual chlorine, no secondary pollution.
7. Flexibility selection: According to different water quality, water quantity requirements, process design, selection is more accurate.

Equipment Parameters

Model	JM-MBR25	JM-MBR35	JM-MBR45	JM-MBR55	JM-MBR65	JM-MBR75	JM-MBR100	JM-MBR200
Treatment of water quantity(m³/d)	25	35	45	55	65	75	100	200
Size(mm)	L4×W2.2×H2.5	L5.5×W2.2×H2.5	L7×W2.2×H2.5	L8.5×W2.2×H2.5	L10×W2.2×H2.5	L11.5×W2.2×H2.5	L12×W3×H3	L16×W3×H3
Meterial of Plant	CS+FRP or SS304
Technology	AA0+MBR+UV
Thickness of shell(mm)	5	5	5	5	5	5	6	6
Inlet water quality	COD＜320mg/l,BOD5＜200mg/l,SS＜200mg/l,NH3-N＜25mg/l,TN＜30mg/l，TP＜5mg/l
Quality of treated sewage	COD＜50mg/l,BOD5＜10mg/l,SS＜10mg/l,NH3-N＜5mg/l,TN＜15mg/l，TP＜0.5mg/l

Note: The above data is for reference only. The parameters and selection are subject to mutual confirmation and can be combined for use. Other non-standard tonnage can be customized.

Application Scenarios

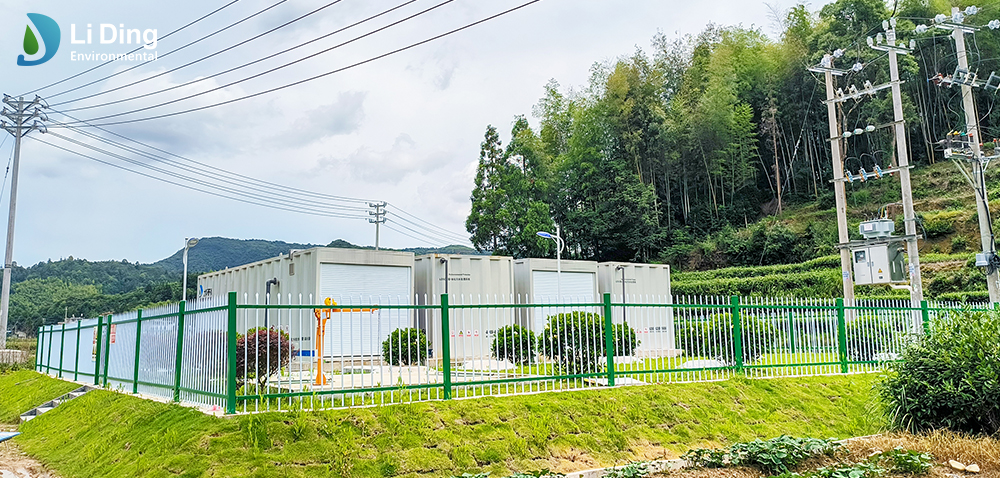

Rural sewage treatment projects, small town sewage treatment plants, urban and river sewage treatment, medical wastewater, hotels, service areas, resorts and other sewage treatment projects.
