Efficient Single-Household Wastewater Treatment System

Short Description:

Liding’s single-household wastewater treatment plant is designed to meet the needs of individual homes with cutting-edge technology. Utilizing the innovative “MHAT + Contact Oxidation” process, this system ensures high-efficiency treatment with stable and compliant discharge. Its compact and flexible design allows for seamless installation in various locations—indoors, outdoors, above ground. With low energy consumption, minimal maintenance, and a user-friendly operation, Liding’s system offers an eco-friendly, cost-effective solution for managing household wastewater sustainably.


Product Detail

Product Tags

Device Features

1. The industry pioneered three modes: "flushing", "irrigation", and "direct discharge", which can achieve automatic conversion.
2. The operating power of the whole machine is less than 40W, and the noise during night operation is less than 45dB.
3. Remote control, operation signal 4G, WIFI transmission.
4. Integrated flexible solar energy technology, equipped with utility and solar energy management modules.
5. One click remote assistance, with professional engineers providing services.

Device Parameters

Processing capacity(m³/d)

0.3-0.5

1.2-1.5

Size(m)

0.7*0.7*1.26

0.7*0.7*1.26

Weight(kg)

70

100

Installed power

<40W

<90W

Solar power

50W

Sewage Treatment Technique

MHAT + contact oxidation

Effluent quality

COD<60mg/l,BOD5<20mg/l,SS<20mg/l,NH3-N<15mg/l,TP<1mg/l

Resourcefulness criteria

Irrigation/toilet flushing

Remarks: The above data are for reference only. The parameters and model selection are mainly confirmed by both parties, and can be used in combination. Other non-standard tonnages can be customized.

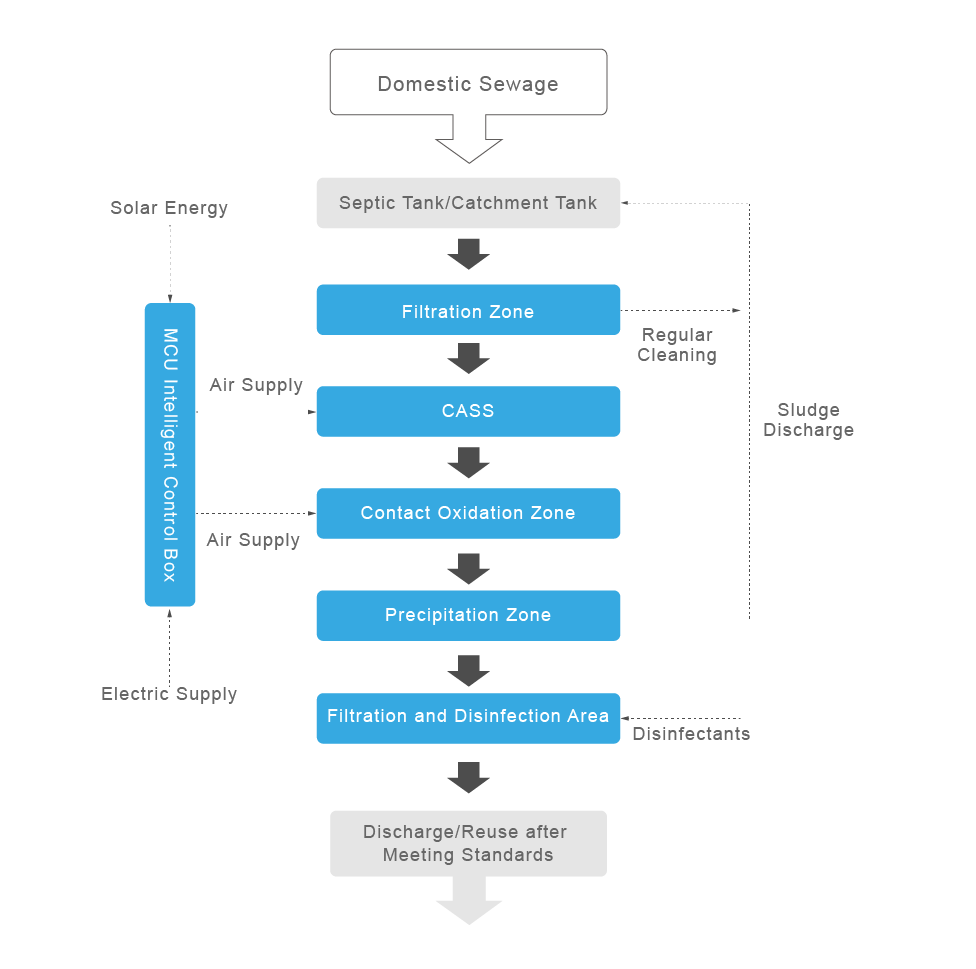

Flow Chart of Process

Household small domestic waste water treatment plant process

Application Scenarios

Suitable for small scattered sewage treatment projects in rural areas, scenic spots, farmhouses, villas, chalets, campsites, etc.
